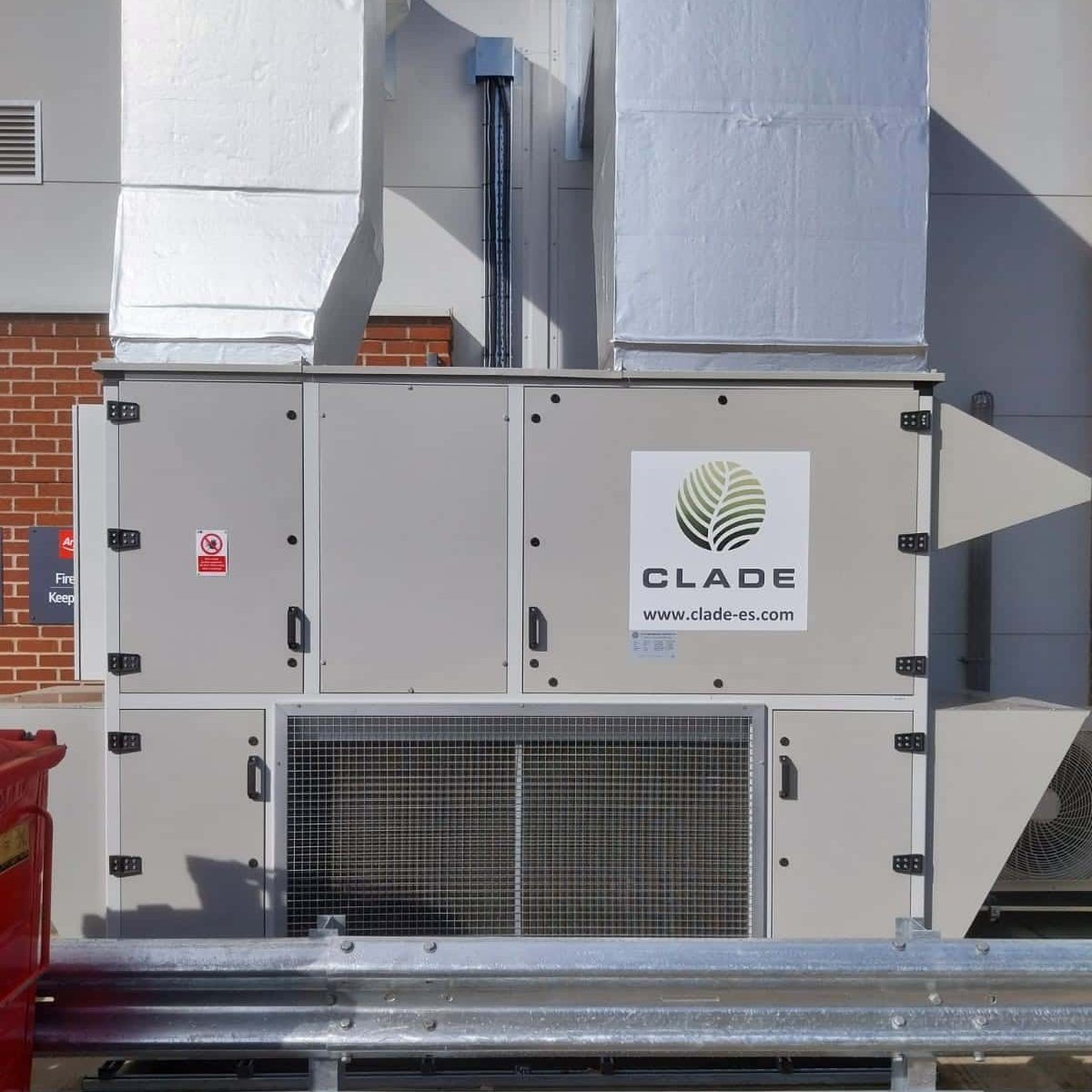

LARCH HEAT PUMP

Our Cascade Heat Pump

Clade Larch cascade heat pumps are a combination of our r290 air source heat pump and r600a water source heat pump.

The benefits of this system are the close matching of flow and return temperatures to those of traditional boiler system of 82⁰C / 71⁰C.


Benefits of Larch Heat Pumps

  • Max flow temperature: 80°C
  • Max return temperature: 70°C
  • Low temp r290 ASHP & high temp r600a WSHP
  • 150KW to 350KW Capacity
  • The Larch can fit on to most sites
  • Sound pressure at 1m: 54.8

What is a Larch Heat Pump?

The Clade Larch Cascade heat pump is actually two heat pumps working together to produce temperatures that can directly replace a boiler, for example 82⁰C flow, 71⁰C return.

Unlike other manufacturers Clade’s Larch is not just a combination of standard products that the designer and installer has to somehow make work, rather it is a specifically designed pair of LT and HT heat pumps that work in harmony for maximum efficiency.

Clade use a combination of hydrocarbon refrigerants , again this optimises efficiency by allowing each different working fluid to work at optimal conditions. The LT system uses r290, propane, and the HT system uses r600a, isobutane.
